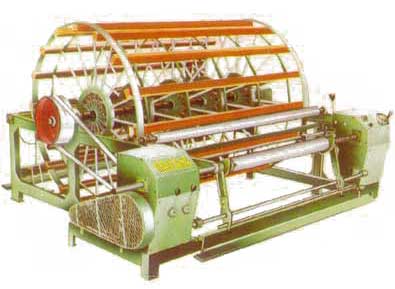

Warping Machine
Warping Machine
- Suitable for cotton rayon, spun, polyester, blends, mixed yarn etc.
- CI and MS fabricated having sturdy, vibration free mechanism.
- Heavy duty beaming unit mounted on heavy duty pipe.
- Complete with flat reed, lease reed with stand.
- Brake pedal on both sides (warping beaming) with stop brake external band brake system.
Specifications
| Item | Unit | Specs |
|---|---|---|
| Warping Speed | mtr/min | <320 mtr |
| Yarn sheet width | mm | 1000- 2000 |
| Beaming Speed | mtr/min | <75 |
| Warping Brake distance | mtr | 2.0 |
| Reed space | mm | 225 |
| Power | HP | 2.5 – 3 |
| Drum circumference | mm | 5000 |
| Cone Blade Height | mm | 300-625 |
| Maximum Cone Blade Height | mm | 140 |
